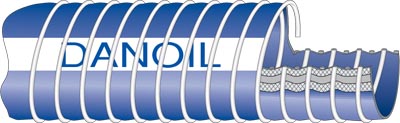

Danoil 9SG Heavy Duty
Oil suction and discharge hoses
With nylon lining this suction and discharge hose is particularly suitable for transfer of MTBE, unleaded petrol, and high aromatics. Its extremely robust construction makes it suitable for marine operations. Hose conforms to BSEN13765:2010, and with the requirements of the USCG and the IMO IBC code.
Especially suitable for MTBE and unleaded petrol.
| Size 1: |
4” |
6” |
8” |
10” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
100 mm |
150 mm |
200 mm |
250 mm |
| Type: |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
10.5 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
150 |
| Bend Radius INS: |
16.0 |
20.0 |
30.0 |
36.0 |
| Bend Radius Mm: |
405 |
510 |
760 |
915 |
| Hose Weight Kg Per M: |
6.4 |
10.7 |
15.0 |
20.5 |
| Hose Weight Lb Per Ft: |
4.3 |
7.2 |
10.0 |
13.7 |
| |
|
|
|
316 Stainless Steel |
| Outer Wire Helix: |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
| Lining: |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
| Reinforcement: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Cover Material: |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
1:5 |
| Max Coil Length Meter: |
30 |
30 |
30 |
30 |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Ft: |
98 |
98 |
98 |
98 |
| Heavy Duty: |
Yes |
Yes |
Yes |
Yes |
