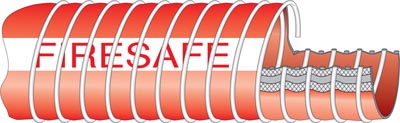

Danoil 9 SG
Firesafe Heavy Duty
Firesafe Oil Suction and Discharge Hoses
This is the most robust Firesafe member of the Danoil Family, making it particularly suitable for the most demanding applications.
Especially suitable for MTBE and unleaded petrol.
| Size 1: |
4” |
6” |
8” |
10” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
100 mm |
150 mm |
200 mm |
250 mm |
| Type: |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
10.5 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
150 |
| Bend Radius INS: |
16.0 |
20.0 |
30.0 |
36.0 |
| Bend Radius Mm: |
400 |
510 |
760 |
915 |
| Hose Weight Kg Per M: |
6.4 |
10.7 |
15.0 |
20.5 |
| Hose Weight Lb Per Ft: |
4.3 |
7.2 |
10.0 |
13.7 |
| Inner Wire Helix: |
Stainless Steel |
Stainless Steel |
Stainless Steel |
Stainless Steel |
| Outer Wire Helix: |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
| Lining: |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
| Reinforcement: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Cover Material: |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
1:5 |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
| Heavy Duty: |
Yes |
Yes |
Yes |
Yes |
