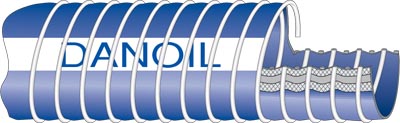

Danoil 9 GG Heavy Duty
Oil suction and discharge hoses
The same as Danoil 7 but with nylon lining, this hose has considerable mechanical strength, making it suitable for marine applications.
This hose conforms to BSEN13765:2010, and meets the requirements of the USCG and IMO IBC codes.
| Size 1: |
4” |
6” |
8” |
10” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
100 mm |
150 mm |
200 mm |
250mm |
| Type: |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
15 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
220 |
| Bend Radius INS: |
16.0 |
20.0 |
30.0 |
36.0 |
| Bend Radius Mm: |
400 |
510 |
760 |
915 |
| Hose Weight Kg Per M: |
6.4 |
10.7 |
15.0 |
25.0 |
| Hose Weight Lb Per Ft: |
4.3 |
7.2 |
10.0 |
17.4 |
| Inner Wire Helix: |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
| Outer Wire Helix: |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
| Lining: |
Polyamide |
Polyamide |
Polyamide |
Polyamide |
| Reinforcement: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Cover Material: |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
1:5 |
| Max Coil Length Meter: |
30 |
30 |
30 |
30 |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Ft: |
98 |
98 |
98 |
98 |
| Heavy Duty: |
Yes |
Yes |
Yes |
Yes |
