Danflon SSA
Standard

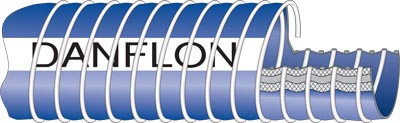

Danflon Suction and Discharge Composite Hoses

Designed for suction and discharge of the most aggressive chemicals and searching solvents and is generally used where the chemical resistance of polypropylene is inadequate.

For elevated tempratures the hose combines the excelent chemical properties of ECTFE with considerable resistance to heat. Meets the requirements of the US Coastguard and IMO Code.

Size 1:	1”	1½”	2”	2½”	3”	4”
Standard:	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010
Bore Diameter:	25 mm	38 mm	50 mm	65 mm	75 mm	100 mm
Type:	4	4	4	4	4	4
Max Working Pressure Bar:	14	14	14	14	14	14
Max Working Pressure PSI:	200	200	200	200	200	200
Bend Radius INS:	4.0	5.5	7.0	8.0	11.0	15.5
Bend Radius Mm:	100	140	180	205	280	395
Hose Weight Kg Per M:	0.8	1.2	1.9	2.5	3.0	5.2
Hose Weight Lb Per Ft:	0.5	0.8	1.3	1.7	2.0	3.5
Inner Wire Helix:	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Outer Wire Helix:	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Lining:	ECTFE	ECTFE	ECTFE	ECTFE	ECTFE	ECTFE
Reinforcement:	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics
Cover Material:	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth
Temperature Range:	-20c to +160c o	-20c to +160c o	-20c to +160c o	-20c to +160c o	-20c to +160c o	-20c to +160c o
Safety Factor:	1:4	1:4	1:4	1:4	1:4	1:4
Max Coil Length Meter:	25	25	25	25	30	30
Max Coil Length Ft:	82	82	82	82	98	98
Heavy Duty:	No	No	No	No	No
