Danflon SG Standart агрессивные химические продукты

Danflon SG
Standard

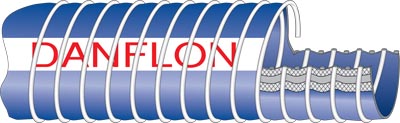

Danflon Suction and Discharge Composite Hoses

Designed for suction and discharge of the most aggressive chemicals and searching solvents and is generally used where the chemical resistance of polypropylene is inadequate.

Can be used to convey certain liquid food products. This hose conforms to BSEN13765:2010.

Size 1:	1”	1½”	2”	2½”	3”	4”
Standard:	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010	BSEN13765:2010
Bore Diameter:	25 mm	38 mm	50 mm	65 mm	75 mm	100 mm
Type:	3	3	3	3	3	3
Max Working Pressure Bar:	14	14	14	14	14	14
Max Working Pressure PSI:	200	200	200	200	200	200
Bend Radius INS:	4.0	5.5	7.0	8.0	11.0	15.5
Bend Radius Mm:	100	140	180	205	280	395
Hose Weight Kg Per M:	0.8	1.2	1.9	2.5	3.0	5.2
Hose Weight Lb Per Ft:	0.5	0.8	1.3	1.7	2.0	3.5
Inner Wire Helix:	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel	316 Stainless Steel
Outer Wire Helix:	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel	Galvanised Mild Steel
Lining:	ECTFE	ECTFE	ECTFE	ECTFE	ECTFE	ECTFE
Reinforcement:	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics	Polyester Fabrics
Cover Material:	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth	PVC Coated Polyester Cloth
Temperature Range:	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o	-30 to +80 o
Safety Factor:	1:4	1:4	1:4	1:4	1:4	1:4
Max Coil Length Meter:	25	25	25	25	30	30
Vacuum Listing	0.9 bar	0.9 bar	0.9 bar	0.9 bar	0.9 bar	0.9 bar
Max Coil Length Ft:	82	82	82	82	98	98
Heavy Duty:	No	No	No	No	No	No
