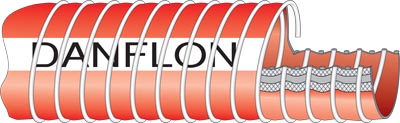

Danflon GG
Heavy Duty
Danflon Suction and Discharge Composite Hoses
Designed for suction and discharge of the most aggressive chemicals and searching solvents and is generally used where the chemical resistance of polypropylene is inadequate.
Meets the requiremets of the Unites States Coastguard and IMO code.
| Size 1: |
4” |
6” |
8” |
10” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
100 mm |
150 mm |
200 mm |
250 mm |
| Type: |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
10.5 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
150 |
| Bend Radius INS: |
16.0 |
20.0 |
30.0 |
36.0 |
| Bend Radius Mm: |
400 |
510 |
760 |
915 |
| Hose Weight Kg Per M: |
6.4 |
10.7 |
15.0 |
20.5 |
| Hose Weight Lb Per Ft: |
4.3 |
7.2 |
10.0 |
13.7 |
| Inner Wire Helix: |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
| Outer Wire Helix: |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
Galvanised Mild Steel |
| Lining: |
ECTFE |
ECTFE |
ECTFE |
ECTFE |
| Reinforcement: |
Polyester Fabrics |
Polyester Fabrics |
Polyester Fabrics |
Polyester Fabrics |
| Cover Material: |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
1:5 |
| Max Coil Length Meter: |
30 |
30 |
30 |
30 |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Ft: |
98 |
98 |
98 |
98 |
| Heavy Duty: |
Yes |
Yes |
Yes |
Yes |
