Danchem SS Standard химические продукты, топливо

Danchem SS Standard химические продукты, топливо

Danchem SS
Standard

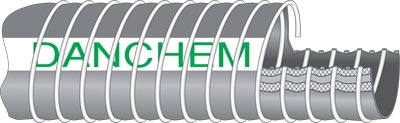

Danchem Suction and Discharge Composite Hoses

General purpose chemical hose suitable for suction discharge and vacuum applications for a wide variety of acids, alkalis, solvents and petroleum products.

Commonly used for road and rail tankers and in plant. This hose can be used to convey certain liquid food products. This hose conforms to BSEN13765:2010.

Size 1: 1” 1½” 2” 2½” 3” 4”
Standard: BSEN13765:2010 BSEN13765:2010 BSEN13765:2010 BSEN13765:2010 BSEN13765:2010 BSEN13765:2010
Bore Diameter: 25 mm 38 mm 50 mm 65 mm 75 mm 100 mm
Type: 3 3 3 3 3 3
Max Working Pressure Bar: 14 14 14 14 14 14
Max Working Pressure PSI: 200 200 200 200 200 200
Bend Radius INS: 4.0 5.5 7.0 8.0 11.0 15.5
Bend Radius Mm: 100 140 180 205 280 395
Hose Weight Kg Per M: 0.8 1.2 1.9 2.5 3.0 5.2
Hose Weight Lb Per Ft: 0.5 0.8 1.3 1.7 2.0 3.5
Inner Wire Helix: 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel
Outer Wire Helix: 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel 316 Stainless Steel
Lining: Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene
Reinforcement: Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene Polypropylene
Cover Material: PVC Coated Polyester Cloth PVC Coated Polyester Cloth PVC Coated Polyester Cloth PVC Coated Polyester Cloth PVC Coated Polyester Cloth PVC Coated Polyester Cloth
Temperature Range: -30 to +80 o -30 to +80 o -30 to +80 o -30 to +80 o -30 to +80 o -30 to +80 o
Коэфф.запаса: 1:4 1:4 1:4 1:4 1:4 1:4
Макс.длина рулона, м: 25 25 25 25 30 30
Vacuum макс. 0.9 bar 0.9 bar 0.9 bar 0.9 bar 0.9 bar 0.9 bar
Макс.длина рулона, Ft: 82 82 82 82 98 98
Тяжелые условия: Нет Нет Нет Нет Нет No
