Danchem PS
Standard

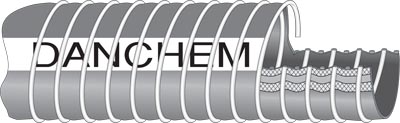

Danchem Suction and Discharge Composite Hoses
This most popular General Purpose Chemical Hose is suitable for suction, discharge and vacuum operations, transferring a wide variety of acids, alkalis, solvents and petroleum products. Primarily used for road and rail tankers and in plant, this is also one of several Dantec hoses suitable for transfer of certain liquid food products. This hose conforms to BSEN13765:2010.
Commonly used for road and rail tankers and in plant. Several Dantec hoses are suitable to carry liquid food products. Hose with aluminium inner wire should not be used with the more acidic products such as vinegar and/or fruit juices.
| Size 1: |
1” |
1½” |
2” |
2½” |
3” |
4” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
25 mm |
38 mm |
50 mm |
65 mm |
75 mm |
100 mm |
| Type: |
3 |
3 |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
14 |
14 |
14 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
200 |
200 |
200 |
| Bend Radius INS: |
4.0 |
5.5 |
7.0 |
8.0 |
11.0 |
15.5 |
| Bend Radius Mm: |
100 |
140 |
180 |
205 |
280 |
395 |
| Hose Weight Kg Per M: |
0.8 |
1.2 |
1.9 |
2.5 |
3.0 |
5.2 |
| Hose Weight Lb Per Ft: |
0.5 |
0.8 |
1.3 |
1.7 |
2.0 |
3.5 |
| Inner Wire Helix: |
Polypropylene Coated Mild Steel |
Polypropylene Coated Mild Steel |
Polypropylene Coated Mild Steel |
Polypropylene Coated Mild Steel |
Polypropylene Coated Mild Steel |
Polypropylene Coated Mild Steel |
| Outer Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Lining: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Reinforcement: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Cover Material: |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
PVC Coated Polyester Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
1:4 |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
30 |
30 |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
98 |
98 |
| Heavy Duty: |
No |
No |
No |
No |
No |
No |
