Danchem PS
Firesafe Heavy Duty

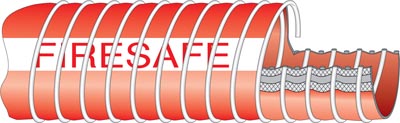

Danchem Firesafe Suction and Discharge Composite Hoses
General purpose heavy duty Firesafe chemical hose suitable for suction discharge and vacuum applications for a wide variety of acids, alkalis, solvents and petroleum products.
Commonly used for road and rail tankers and in plant. Several Dantec hoses are suitable to carry liquid food products. Hose with aluminium inner wire should not be used with the more acidic products such as vinegar and/or fruit juices.
| Size 1: |
4” |
6” |
8” |
10” |
| Standard: |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
BSEN13765:2010 |
| Bore Diameter: |
100 mm |
150 mm |
200 mm |
250 mm |
| Type: |
3 |
3 |
3 |
3 |
| Max Working Pressure Bar: |
14 |
14 |
14 |
10.5 |
| Max Working Pressure PSI: |
200 |
200 |
200 |
150 |
| Bend Radius INS: |
16.0 |
20.0 |
30.0 |
36.0 |
| Bend Radius Mm: |
405 |
510 |
760 |
915 |
| Hose Weight Kg Per M: |
6.4 |
10.7 |
15.0 |
20.5 |
| Hose Weight Lb Per Ft: |
4.3 |
7.2 |
10.0 |
13.7 |
| Inner Wire Helix: |
Polypropylene Coated Galvanised Mild Steel |
Polypropylene Coated Galvanised Mild Steel |
Polypropylene Coated Galvanised Mild Steel |
Polypropylene Coated Galvanised Mild Steel |
| Outer Wire Helix: |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
316 Stainless Steel |
| Lining: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Reinforcement: |
Polypropylene |
Polypropylene |
Polypropylene |
Polypropylene |
| Cover Material: |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
Fire Resistant PVC Coated Ceramic Cloth |
| Temperature Range: |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
-30 to +80 o |
| Safety Factor: |
1:5 |
1:5 |
1:5 |
1:5 |
| Max Coil Length Ft: |
82 |
82 |
82 |
82 |
| Vacuum Listing |
0.9 bar |
0.9 bar |
0.9 bar |
0.9 bar |
| Max Coil Length Meter: |
25 |
25 |
25 |
25 |
| Heavy Duty: |
Yes |
Yes |
Yes |
Yes |
