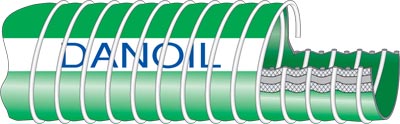

Hose commonly used for road tanker and in plant transfer of petrol, fuel oils and lubricating oils. A well proven hose which is used by tanker fleets worldwide.
1. Standard Duty: 1
| Size 1: | 1” | 1½” | 2” | 2½” | 3” | 4” |
|---|---|---|---|---|---|---|
| Standard: | BSEN13765:2010 | BSEN13765:2010 | BSEN13765:2010 | BSEN13765:2010 | BSEN13765:2010 | BSEN13765:2010 |
| Bore Diameter: | 25 mm | 38 mm | 50 mm | 65 mm | 75 mm | 100 mm |
| Type: | 2 | 2 | 2 | 2 | 2 | 2 |
| Max Working Pressure Bar: | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Max Working Pressure PSI: | 150 | 150 | 150 | 150 | 150 | 150 |
| Bend Radius INS: | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 10.5 |
| Bend Radius Mm: | 100 | 125 | 150 | 180 | 205 | 265 |
| Hose Weight Kg Per M: | 0.8 | 1.1 | 1.6 | 2.1 | 2.5 | 3.6 |
| Hose Weight Lb Per Ft: | 0.5 | 0.7 | 1.1 | 1.4 | 1.7 | 2.4 |
| Inner Wire Helix: | Galvanised Mild Steel | Galvanised Mild Steel | Galvanised Mild Steel | Galvanised Mild Steel | Galvanised Mild Steel | Galvanised Mild Steel |
| Outer Wire Helix: | Galvanised Mild Steel | Galvanised Mild Steel | Galvanised Mild Steel | Galvanised Mild Steel | Galvanised Mild Steel | Galvanised Mild Steel |
| Lining: | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene |
| Reinforcement: | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene | Polypropylene |
| Cover Material: | PVC Coated Polyester Cloth | PVC Coated Polyester Cloth | PVC Coated Polyester Cloth | PVC Coated Polyester Cloth | PVC Coated Polyester Cloth | PVC Coated Polyester Cloth |
| Temperature Range: | -30 to +80 o | -30 to +80 o | -30 to +80 o | -30 to +80 o | -30 to +80 o | -30 to +80 o |
| Safety Factor: | 1:4 | 1:4 | 1:4 | 1:4 | 1:4 | 1:4 |
| Vacuum Listing | 0.9 bar | 0.9 bar | 0.9 bar | 0.9 bar | 0.9 bar | 0.9 bar |
| Max Coil Length Meter: | 25 | 25 | 25 | 25 | 30 | 30 |
| Max Coil Length Ft: | 82 | 82 | 82 | 82 | 98 | 98 |
| Heavy Duty: | No | No | No | No | No | No |
